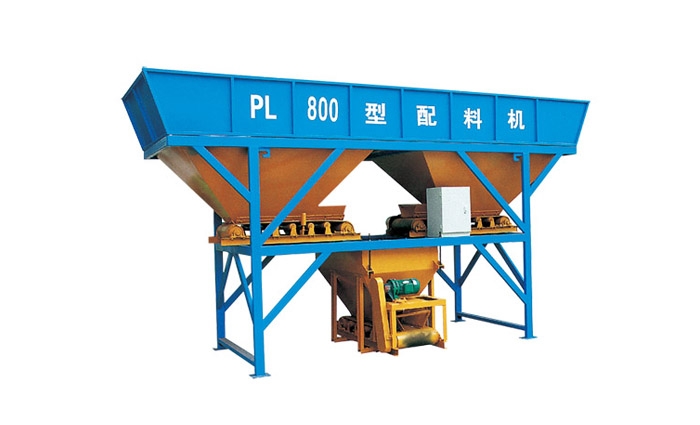

  • PL800 Concrete Batching Machine

PL Series Concrete Batching Machine
It is a matching device for automatic weighing that used with mixer. It can automatically batch three aggregates such as sand and crushed stone in accordance with the concrete ration set by the users beforehand.

The machine can be matched with Model JS500 or JS750B mixer to form a simple concrete mixing station. It is an ideal device for industrial and civil architecture industry, small and medium construction units and prefabrication factories to produce high-quality concrete. (The machine can be added with bulk cement silo and cement scale at your option).

Technical Charcteristic
PL800 PL1200
Nominal Capacity of Weighing Hopper 0.8 1.2
Capacity of Storage Hopper 2x2 3x3
Productivity m³/h 48 60
Batching Precision ±2% ±2%
Max. Weighing Magnitude Kg 1500 2000
Types of Aggregates for Batching type 2 3
Feeding Height mm 2300 2400
Measuring Method   Electronic Weigher E-belt
Batching Method   Electric Conveyor Belt Electric Conveyor Belt (flat)
Discharging Method   Electric Conveyor Belt Electric Conveyor Belt (flat)
Total Power kw 4.5 10.6
Weight kg 2250 3760


 *
 *
 *
 *
 *
 *
