  • QT10-15

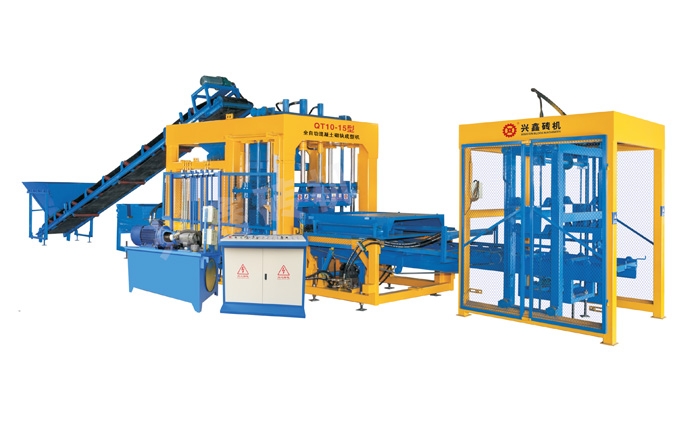

QT Series Multi-functional Fully Automatic Block Making Machine
As a “National Inspection-free Product”, Xingxin block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading level of its kind at home. It is applied in producing high-strength and fine-quality ordinary concrete blocks, fly ash blocks, waste residue blocks, etc. The blocks produced are featured with high consistency, good capabilities in frost-resistance,  permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.
Technical Charcteristic
1.Imported high-effect hydraulic proprotion system pure component(more efficient and energy conservation)
2.Imported intelligence PLC touch screen and pure electrical element (high automaticity and easy to operate)
3.Arch breaking type rapid feeding device(better feeding for multi-hole brick with better uniformity)
4.Extend type high efficient vibrotechnique (Forming production faster and with higher compactedness)
5.High-heart treatment special technoligy (to make the mould more durable and more firm )
Producers goods
Using smallrock,sand,stones,cement,can be heavy addition with fly-ash,slag,coal gangue,ceramsite,pearlite and etc many type or industrial Waste.
One machining with multiple uses,by changing mould it can produce all type of standard building blocks.
Multi-holes block and hollow block
Ceramsite heat preservation block
Composite heat preservation concrete block
The above production come with good heat preservation performance,and satisfy the national new energy conservation policy demand.

TECHNICAL PARAMETERS
Vibration Frequency 3800-4500r/min
Main machine weigh 14500KG
Dimension 11500*4050*2800mm
Capacity 45.9KW
Cycle Time 15-20(S)
Rated pressure 31.5mpa
Vibration force 105KN
Pallet size 1100*880*25mm
Vibration type hydraulic vibration
Stacking machine power 3.0KW

Block Specification Size (mm) Block Mould pcs/mould PCS/8Hours
Hollow brick 390*190*190   10 14400-19200
Porous block 240*115*90   24 34560-46080
Solid brick 240*115*51   51 74880-99840
Holland Brick 200*100*60 31 44640


 *
 *
 *
 *
 *
 *
